Material Summary
Advanced structural porcelains, due to their one-of-a-kind crystal structure and chemical bond features, show performance advantages that steels and polymer materials can not match in extreme settings. Alumina (Al Two O THREE), zirconium oxide (ZrO TWO), silicon carbide (SiC) and silicon nitride (Si three N FOUR) are the four significant mainstream design ceramics, and there are crucial differences in their microstructures: Al ₂ O four comes from the hexagonal crystal system and relies on solid ionic bonds; ZrO ₂ has 3 crystal types: monoclinic (m), tetragonal (t) and cubic (c), and gets unique mechanical homes with phase adjustment strengthening system; SiC and Si Three N ₄ are non-oxide porcelains with covalent bonds as the primary element, and have stronger chemical stability. These architectural distinctions straight result in significant differences in the prep work process, physical homes and engineering applications of the 4. This article will methodically analyze the preparation-structure-performance connection of these 4 ceramics from the perspective of products scientific research, and explore their leads for industrial application.
(Alumina Ceramic)
Preparation procedure and microstructure control
In terms of prep work procedure, the four porcelains show obvious differences in technical paths. Alumina ceramics utilize a relatively conventional sintering procedure, typically utilizing α-Al ₂ O six powder with a purity of greater than 99.5%, and sintering at 1600-1800 ° C after completely dry pushing. The secret to its microstructure control is to hinder abnormal grain growth, and 0.1-0.5 wt% MgO is generally added as a grain limit diffusion prevention. Zirconia porcelains require to present stabilizers such as 3mol% Y ₂ O ₃ to retain the metastable tetragonal phase (t-ZrO two), and utilize low-temperature sintering at 1450-1550 ° C to prevent extreme grain development. The core process difficulty lies in properly regulating the t → m phase transition temperature level window (Ms point). Because silicon carbide has a covalent bond ratio of as much as 88%, solid-state sintering requires a heat of greater than 2100 ° C and relies on sintering help such as B-C-Al to form a fluid phase. The response sintering approach (RBSC) can accomplish densification at 1400 ° C by infiltrating Si+C preforms with silicon melt, yet 5-15% free Si will certainly continue to be. The preparation of silicon nitride is the most complicated, generally using general practitioner (gas pressure sintering) or HIP (warm isostatic pushing) procedures, adding Y TWO O THREE-Al two O two series sintering help to form an intercrystalline glass stage, and warm treatment after sintering to take shape the glass phase can substantially enhance high-temperature efficiency.

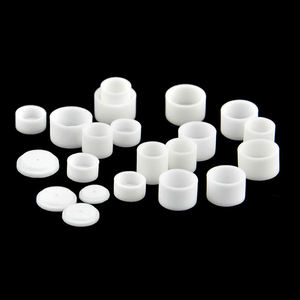

( Zirconia Ceramic)
Contrast of mechanical buildings and strengthening mechanism
Mechanical residential properties are the core examination indications of architectural ceramics. The four kinds of materials show entirely different conditioning systems:

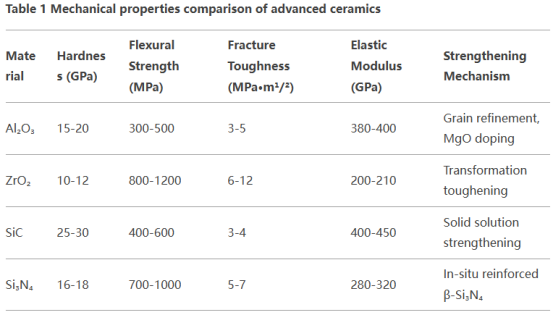

( Mechanical properties comparison of advanced ceramics)
Alumina primarily depends on fine grain strengthening. When the grain dimension is lowered from 10μm to 1μm, the stamina can be raised by 2-3 times. The outstanding sturdiness of zirconia comes from the stress-induced phase improvement device. The tension field at the crack idea triggers the t → m stage makeover accompanied by a 4% quantity growth, leading to a compressive anxiety shielding result. Silicon carbide can boost the grain border bonding stamina through strong remedy of components such as Al-N-B, while the rod-shaped β-Si two N four grains of silicon nitride can generate a pull-out result similar to fiber toughening. Split deflection and connecting add to the enhancement of sturdiness. It is worth keeping in mind that by constructing multiphase porcelains such as ZrO TWO-Si Two N Four or SiC-Al Two O FIVE, a range of strengthening systems can be coordinated to make KIC go beyond 15MPa · m 1ST/ TWO.
Thermophysical buildings and high-temperature behavior
High-temperature security is the crucial benefit of architectural ceramics that identifies them from traditional materials:

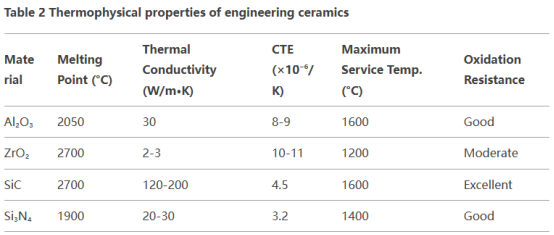

(Thermophysical properties of engineering ceramics)
Silicon carbide displays the most effective thermal administration efficiency, with a thermal conductivity of up to 170W/m · K(comparable to aluminum alloy), which results from its basic Si-C tetrahedral framework and high phonon breeding rate. The reduced thermal development coefficient of silicon nitride (3.2 × 10 ⁻⁶/ K) makes it have outstanding thermal shock resistance, and the important ΔT worth can get to 800 ° C, which is particularly ideal for duplicated thermal cycling settings. Although zirconium oxide has the highest possible melting factor, the conditioning of the grain limit glass phase at heat will certainly create a sharp drop in stamina. By embracing nano-composite modern technology, it can be boosted to 1500 ° C and still preserve 500MPa toughness. Alumina will certainly experience grain limit slip above 1000 ° C, and the enhancement of nano ZrO two can create a pinning effect to prevent high-temperature creep.
Chemical stability and deterioration actions
In a destructive setting, the four kinds of porcelains show considerably various failing systems. Alumina will dissolve on the surface in solid acid (pH <2) and strong alkali (pH > 12) remedies, and the corrosion price rises significantly with increasing temperature level, getting to 1mm/year in steaming concentrated hydrochloric acid. Zirconia has good tolerance to inorganic acids, yet will undertake low temperature level destruction (LTD) in water vapor settings over 300 ° C, and the t → m stage transition will certainly bring about the formation of a microscopic split network. The SiO two protective layer formed on the surface of silicon carbide provides it superb oxidation resistance below 1200 ° C, yet soluble silicates will be generated in liquified antacids steel atmospheres. The rust habits of silicon nitride is anisotropic, and the corrosion rate along the c-axis is 3-5 times that of the a-axis. NH ₃ and Si(OH)₄ will certainly be produced in high-temperature and high-pressure water vapor, leading to product cleavage. By maximizing the structure, such as preparing O’-SiAlON porcelains, the alkali deterioration resistance can be raised by greater than 10 times.

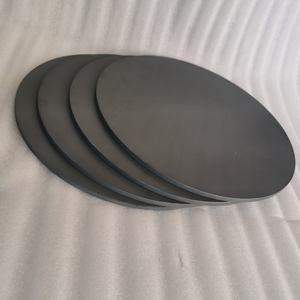

( Silicon Carbide Disc)
Regular Engineering Applications and Case Research
In the aerospace area, NASA makes use of reaction-sintered SiC for the leading side elements of the X-43A hypersonic aircraft, which can hold up against 1700 ° C wind resistant home heating. GE Aeronautics uses HIP-Si three N four to manufacture wind turbine rotor blades, which is 60% lighter than nickel-based alloys and permits higher operating temperatures. In the clinical area, the fracture stamina of 3Y-TZP zirconia all-ceramic crowns has reached 1400MPa, and the service life can be included more than 15 years via surface slope nano-processing. In the semiconductor market, high-purity Al two O two porcelains (99.99%) are made use of as tooth cavity materials for wafer etching equipment, and the plasma rust rate is <0.1μm/hour. The SiC-Al₂O₃ composite armor developed by Kyocera in Japan can achieve a V50 ballistic limit of 1800m/s, which is 30% thinner than traditional Al₂O₃ armor.
Technical challenges and development trends
The main technical bottlenecks currently faced include: long-term aging of zirconia (strength decay of 30-50% after 10 years), sintering deformation control of large-size SiC ceramics (warpage of > 500mm parts < 0.1 mm ), and high production cost of silicon nitride(aerospace-grade HIP-Si two N four gets to $ 2000/kg). The frontier advancement instructions are focused on: one Bionic structure style(such as shell split structure to boost toughness by 5 times); two Ultra-high temperature level sintering technology( such as spark plasma sintering can accomplish densification within 10 minutes); five Smart self-healing porcelains (having low-temperature eutectic stage can self-heal splits at 800 ° C); ④ Additive manufacturing technology (photocuring 3D printing accuracy has reached ± 25μm).

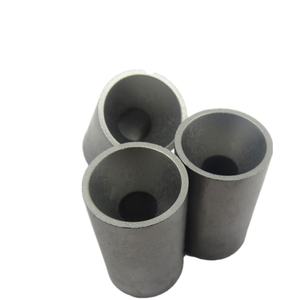

( Silicon Nitride Ceramics Tube)
Future development patterns
In a detailed comparison, alumina will still dominate the conventional ceramic market with its cost advantage, zirconia is irreplaceable in the biomedical area, silicon carbide is the preferred product for severe settings, and silicon nitride has terrific possible in the field of high-end tools. In the next 5-10 years, through the assimilation of multi-scale structural regulation and intelligent production modern technology, the efficiency boundaries of engineering porcelains are anticipated to achieve new innovations: as an example, the layout of nano-layered SiC/C porcelains can accomplish strength of 15MPa · m ONE/ ², and the thermal conductivity of graphene-modified Al ₂ O two can be increased to 65W/m · K. With the improvement of the “twin carbon” method, the application scale of these high-performance ceramics in new power (fuel cell diaphragms, hydrogen storage space materials), eco-friendly production (wear-resistant parts life raised by 3-5 times) and other areas is anticipated to keep an average annual growth price of greater than 12%.
